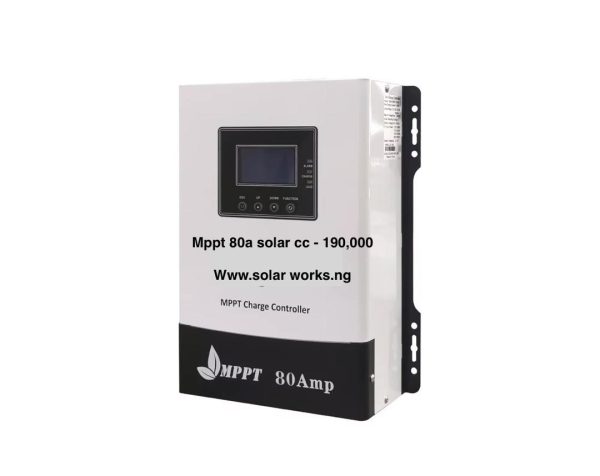

80Amp MPPT Solar Charge Controller
Original price was: ₦200,000.00.₦190,000.00Current price is: ₦190,000.00.
80ahms MPPT Solar Charge Controller
This solar charge controller is an advanced solar charger with maximum power point tracking. Applying intelligent MPPT algorithm, it allows solar charge controller to extract maximum power from the sun.
The MPPT battery charging process has been optimized for long battery life and improved system performance.
- MPPT technology
- 80ahms
- Charge Control
- Suitable for any solar architecture
- Description
- Reviews (0)
Description
80 Amp Solar Charge Controller MPPT
- Maximum Solar input Voltage: 145V
- Nominal System Voltage: 12,24,48v DC(Auto detection)
- Maximum Battery Current: 45A
- DC Array MPPT Volage Range: 12VDC/24VDC/48VDC
- PV Array MPPT Volage Range: 15-115VDC/30-115VDC-60-115VDC
- Maximum input Power: 12Volt-1100Watts / 24Volt-2200Watts / 48Volt-4400Watts
- Charging Algorithm: 3-Step
- Charging stages: Bulk, Absorption, Float Bulk, Absorption, Float
- Temperature compensation coefficient: -5mV/℃/cell(25℃ref.) -5mV/℃/cell(25℃ref.)
- Temperature compensation range: 0℃ to +50℃ 0℃ to +50℃
- Temperature compensated set points: Absorption,Float Absorption,Float
- Charging Set points Absorption Stage: Absorption Stage Float Stage
- Flooded Battery 14.6V/29.2V/58.4V 14.6V/29.2V/58.4V 13.5V/27V/54V
- ARG/Gel Battery:（Default) 14.1V/28.2V/56.4V 14.1V/28.2V/56.4V 13.5V/27V/54V
- Overcharge voltage: 15V/30V/60V 15V/30V/60V
- Overcharge restart voltage: 14.5V/29V/58V 14.5V/29V/58V
- Battery discharge voltage: 8.5V/17V/34V 8.5V/17V/34V
- Battery overdischarge voltage: 9V/18V/36V 9V/18V/36V
- Product size: (H*W*D,mm) 283*180*105mm
- Product weight(Kg): 5.1kg
- Ambient Temperature Range: 0℃ to +55℃
- Storage Temperature: -40℃ to 75℃
- Humidity 0%-90%RH: (No condensing)
- Enclosure IP31(indoor&vented)
✅ Ideal for:
- All Solar Architecture
